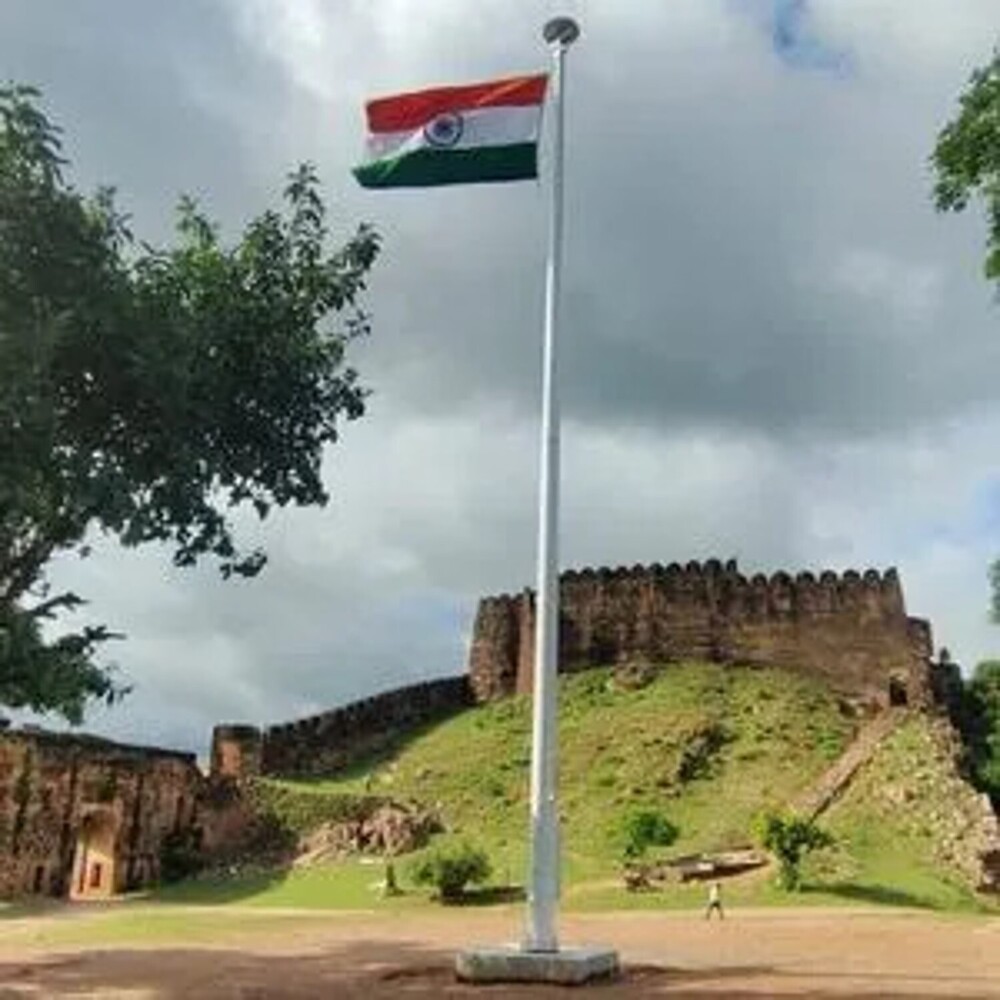

Mild Steel 20 Mtr Flag Mast Pole

Product Description

Material	Mild Steel
Surface Finishing	Hot Dip Galvanized
Diameter	680 mm
Finish	Powder Coated
Usage	Flag Hoisting Ceremony
Base Plate Thickness	32 mm
Height	20 Meter

Key Features of a 20 Meter Flag Mast Pole

1. Height:

   • 20 meters (approx. 65.6 feet) above ground level.

2. Material:

   • High-strength mild steel or high-tensile steel.

   • Conforms to IS:2062 / BS EN standards.

   • Hot-dip galvanized (80100 microns) for corrosion protection.

3. Design Type:

   • Polygonal (generally 12/16-sided) tapered design for better wind resistance.

   • Single or multi-section construction (for ease of transportation and installation).

4. Base & Mounting:

   • Flanged base plate with anchor bolts and template.

   • Civil foundation required as per engineering drawing.

5. Wind Resistance:

   • Designed to withstand wind speeds up to 180 km/h or as per site requirement (customizable for wind zone).

   • Factor of safety as per IS/ASTM codes.

6. Flag Hoisting System:

   • Internal winch mechanism with stainless steel wire rope.

   • Motorized or manual winch option.

   • Rotating pulley and guiding system for smooth operation.

   • Lockable access door for winch at base.

7. Finish:

   • Hot-dip galvanized, optionally powder-coated or painted as per aesthetic requirements.

8. Accessories:

   • Gold-finish ball or finial on top.

   • Base cover, lightning arrester (optional), aviation light (optional).

9. Maintenance Access:

   • Ground-operated winch for lowering and raising the flag, eliminating the need to climb.

10. Applications:

• Government buildings

• Public parks or memorials

• Airports and ports

• Corporate headquarters

• Ceremonial or national locations

Superior Engineering and Material Quality

Constructed from premium mild steel and finished with hot dip galvanization, this flag mast pole provides exceptional strength and corrosion resistance. Its 680 mm thickness ensures the pole remains robust, while the 20-meter height is suitable for both large outdoor spectacles and routine flag ceremonies. The white finish offers a clean, modern look suitable for any setting.


Comprehensive Flag Mast Solutions Across India

As a renowned manufacturer, service provider, and supplier in India, we deliver flag mast poles tailored to the specific needs of institutional, public, and private sector clients. Our service encompasses installation, maintenance, and customization, ensuring that every mast pole meets the highest safety and aesthetic standards.
